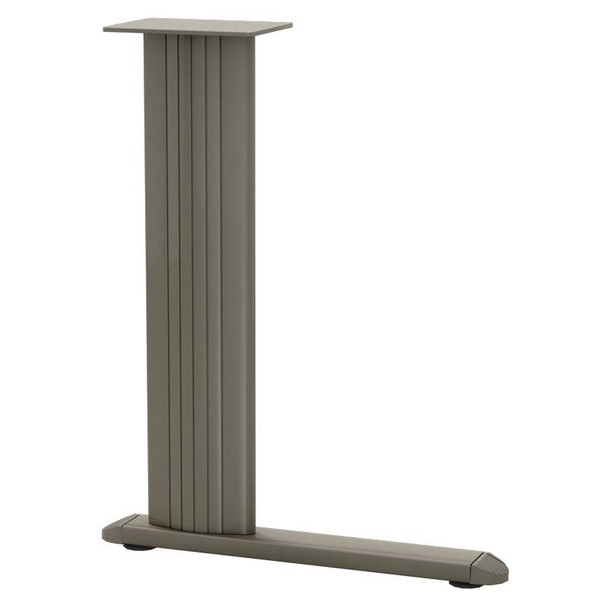

Oval C-Base

(No reviews yet) Write a Review
SKU:
262X-WM
  • Oval C-Base
  • Oval C-Base
  • Oval C-Base
  • Oval C-Base
  • Oval C-Base
  • Oval C-Base
  • Oval C-Base
$139.31 - $186.45

Description

Simple, attractive and affordable, this system allows you to easily add a modesty panel and wire management raceway to this fine table base.

  • Height: 27-3/4"; 40-3/4"
  • Construction: Bolted assembly
  • Finish: Black (standard)
  • Lead Time: Standard Black finish - 2-3 weeks. Require 2-1/2 to 3 week lead time for twelve (12) powder coat finishes
  • Column diameter: 2" x 6"
  • Base Spread: 17"; 22-1/4"; 27-3/4"
  • Mounting plate: Fabricated Steel .187" x 6" x 6 "; requires (6-8) #12-14 screws
  • Leveler foot allows additional 3/8-16 x .87" upward height adjustment for uneven floors
  • 330 lbs. vertical load rating per base
  • Pricing is per leg
Base SpreadWeightRecommended Max. Top Depth

17"
12 lbs.
18" - 22"
22-1/4"
13 lbs.
23" - 27"
27-3/4"
14 lbs.
28" - 32"

View AllClose

Specifications

Color/Finsh :
Black (standard), Black wrinkle, Champagne, Gray (Medium), Inner tone light, Light brown (Sand), Light tone, Medium tone, Silver, White (Soft)
Column Tubing :
14 gauge wall
Construction :
Bolted assembly
Cutting :
Can be custom cut at factory
Diameter :
2" x 6" Oval
Function/Application :
Table Bases
Height :
27-3/4", 40-3/4"
Material :
Metal / Steel
Mounting-Style :
6" x 8" x 0.187" Fabricated Steel
Base Spread :
17", 22-1/4", 27-3/4"
Height Adjustment :
7/8"
Load Rating :
330 lbs (150kg) static vertical load
Packing Units:
Single
Shape :
Elliptical / Oval
